TN70A Turf Tractor (2004-2008)
An upgrade to the TN70, the TN70A is powered by a Iveco 2.9L 3-cyl Diesel engine and could be found with 8, 12, and 16-speed transmissions. The TN70A was also released in the TN70DA model which included a cab and the TN70SA which was equipped with SuperSteer. To learn more about the TN70A visit TractorData.com.
-
TN70A(2) PIN
Original price $8.40 - Original price $8.40Original price$8.40$8.40 - $8.40Current price $8.40PIN, 8mm OD x 22mm L
SKU: 10249270

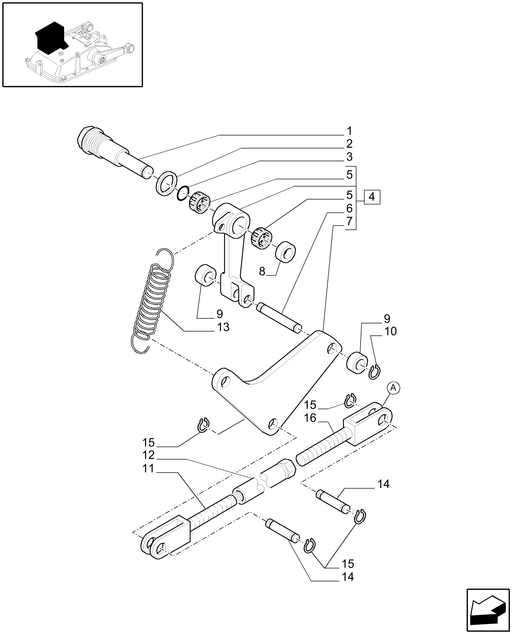

Diagram Ref. Number: 14.0
Status: In stockOriginal price $8.40 - Original price $8.40Original price$8.40$8.40 - $8.40Current price $8.40 -
TN70A(2) ARM
Original price $101.00 - Original price $101.00Original price$101.00$101.00 - $101.00Current price $101.00ARM
SKU: 5173357
Diagram Ref. Number: 4.0
Status: Out of stockOriginal price $101.00 - Original price $101.00Original price$101.00$101.00 - $101.00Current price $101.00 -
TN70A(2) NUT
Original price $28.00 - Original price $28.00Original price$28.00$28.00 - $28.00Current price $28.00NUT, Adjusting, M8 x 1.25 x 80mm
SKU: 10092511
Diagram Ref. Number: 12.0
Status: In stockOriginal price $28.00 - Original price $28.00Original price$28.00$28.00 - $28.00Current price $28.00 -
TN70A(2) LEVER
Original price $14.26 - Original price $14.26Original price$14.26$14.26 - $14.26Current price $14.26LEVER
SKU: 5150257
Diagram Ref. Number: 7.0
Status: In stockOriginal price $14.26 - Original price $14.26Original price$14.26$14.26 - $14.26Current price $14.26 -
TN70A(2) SPACER
Original price $1.40 - Original price $1.40Original price$1.40$1.40 - $1.40Current price $1.40SPACER, 14.1mm ID x 19mm OD x 5mm L
SKU: 5116251
Diagram Ref. Number: 8.0
Status: In stockOriginal price $1.40 - Original price $1.40Original price$1.40$1.40 - $1.40Current price $1.40 -
TN70A(2) PIN
Original price $21.05 - Original price $21.05Original price$21.05$21.05 - $21.05Current price $21.05PIN, 14mm OD x 96mm L
SKU: 5168417
Diagram Ref. Number: 1.0
Status: In stockOriginal price $21.05 - Original price $21.05Original price$21.05$21.05 - $21.05Current price $21.05 -
TN70A(2) YOKE
Original price $73.20 - Original price $73.20Original price$73.20$73.20 - $73.20Current price $73.20YOKE
SKU: 10008911
Diagram Ref. Number: 16.0
Status: In stockOriginal price $73.20 - Original price $73.20Original price$73.20$73.20 - $73.20Current price $73.20 -
TN70A(2) YOKE
Original price $55.10 - Original price $55.10Original price$55.10$55.10 - $55.10Current price $55.10YOKE, M8 (LH) x 8mm Hole Dia x 90mm L
SKU: 11990774
Diagram Ref. Number: 11.0
Status: In stockOriginal price $55.10 - Original price $55.10Original price$55.10$55.10 - $55.10Current price $55.10 -
TN70A(2) PIN
Original price $10.40 - Original price $10.40Original price$10.40$10.40 - $10.40Current price $10.40PIN, 8mm OD x 53mm L
SKU: 5173361
Diagram Ref. Number: 6.0
Status: Out of stockOriginal price $10.40 - Original price $10.40Original price$10.40$10.40 - $10.40Current price $10.40 -
TN70A(2) CIRCLIP
Original price $0.74 - Original price $0.74Original price$0.74$0.74 - $0.74Current price $0.74CIRCLIP, Ext., M8, BLO
SKU: 11087976
Diagram Ref. Number: 15.0
Status: In stockOriginal price $0.74 - Original price $0.74Original price$0.74$0.74 - $0.74Current price $0.74 -
TN70A(2) ROLLER BEARING
Original price $153.30 - Original price $153.30Original price$153.30$153.30 - $153.30Current price $153.30ROLLER BEARING, Needle, 14mm ID x 20mm OD x 12mm W
SKU: 5109160
Diagram Ref. Number: 5.0
Status: In stockOriginal price $153.30 - Original price $153.30Original price$153.30$153.30 - $153.30Current price $153.30 -
TN70A(2) SEAL
Original price $22.00 - Original price $22.00Original price$22.00$22.00 - $22.00Current price $22.00SEAL, 22.3mm ID x 28mm OD x 1.5mm Thk
SKU: 10263460
Diagram Ref. Number: 2.0
Status: In stockOriginal price $22.00 - Original price $22.00Original price$22.00$22.00 - $22.00Current price $22.00
